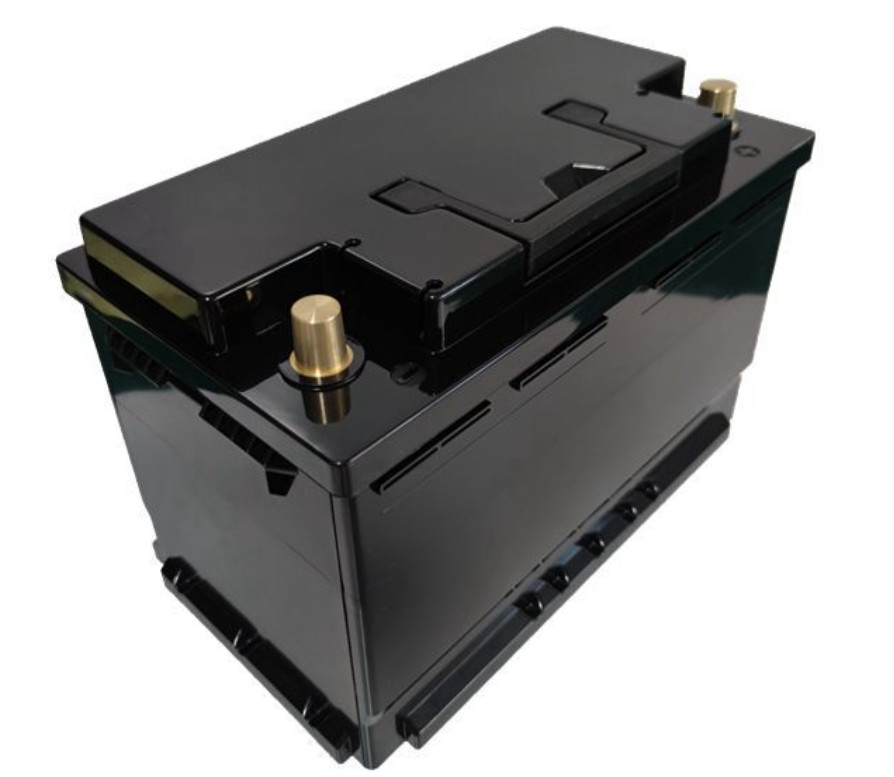

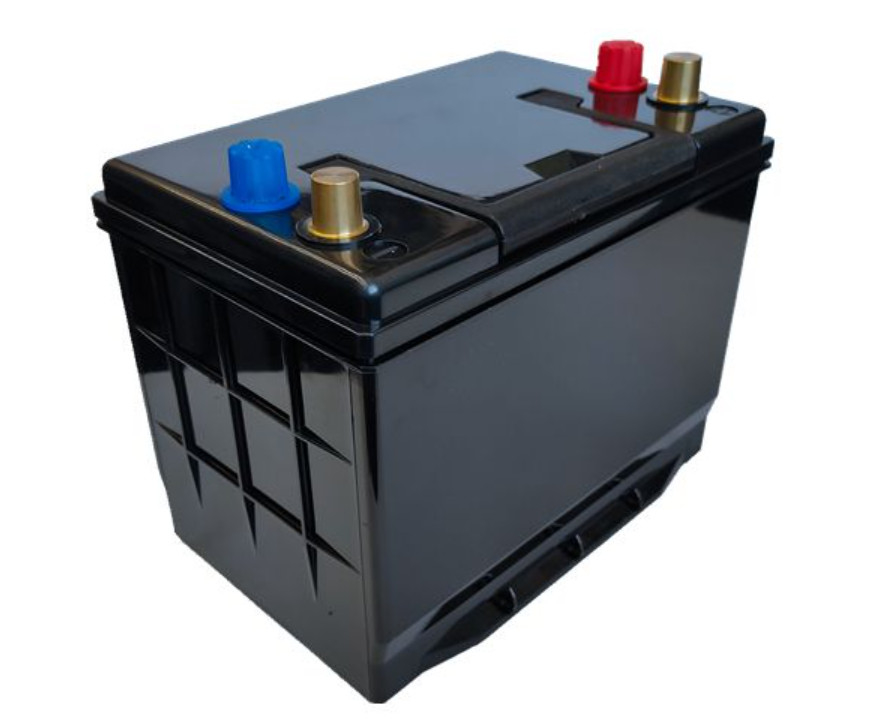

4000 Times Marine Lithium Battery BMS 12V 100Ah LiFePO4 Deep Cycle

Basic Information
Place of Origin: CHINA
Brand Name: Coslight or OEM
Certification: UL, CE, FCC, RoHS, Un38.3, CB, IEC62133, MSDS
Model Number: 1260
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 10~15days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 8000pcs/week
Warranty: 1 Year Certification: CE,ISO9001,ISO
Condition: New Material: Cast Iron
Type: LIFEPO4 Capacity: 200Ah
High Light:

ODM 100Ah Marine Lithium Battery

,

ODM BMS Marine Lithium Battery

,

ODM BMS marine deep cycle lithium battery

Electrical Specification
Mechanical Specifications
Nominal Voltage:
25.6V
Dimensions(L*W*H):
486*170*240mm
Nominal Capacity
100Ah
Weight:
20KG
Capacity @50A
120min
Terminal Type:
M8/M6
Energy
2560Wh
Case Material:
ABS
Resistance
≤30mΩ @ 50% SOC
Enclosure Protection:
IP65
Efficiency:
99%
Cell Type:
Prismatic
Self Discharge
≤3.5% Per Month
Chemistry:
LifePo4
Maximum Modules in series of Parallel:
8
Configuration:
8S1P
Discharge Specifications
Charge Specifications
Maximum Continuous Discharge Current
100A
Recommend Charge Current
5A-50A
Peak Discharge Current
260A≤5s
Maximum Charge Current
100A
BMS Discharge Current Cut-off
300A±20A [2.2±1ms]
Recommed Charge Voltage
28.4-29.2V
Recommend Low Voltage Disconnect
17.6V
BMS Charge Voltage Cut-off
30V[3.75±0.1V]
BMS Discharge Voltage Cut-off
17.6V[2.2±0.08 vpc] [100±50ms]
Reconnect Voltage
29.2V[3.65±0.1V]
Reconnect Voltage
20V[2.5±0.1vpc]
Balancing Voltage
28.0V[3.5±0.025vpc]
Short Circuit Protection
200-400μs
Balancing Current
35±5mA
Temperature Specifications
Discharge Temperature
-4 to 140℉[-20 to 60℃]
Charge Temperature
32 to 113℉[0 to 45℃]
Storage Temperature
-4 to 113℉[-20 to 45℃]
BMS High Temperature cut-off Discharge
149℉[65℃][Customized]
Reconnect Temperature
122℉[50℃][Customized]
Low Temperature Cut-off Charge
32℉[0℃][Customized]
High Temperature Cut-off Charge
129.2℉[54℃][Customized]

4000 Times Marine Lithium Battery BMS 12V 100Ah LiFePO4 Deep Cycle 04000 Times Marine Lithium Battery BMS 12V 100Ah LiFePO4 Deep Cycle 14000 Times Marine Lithium Battery BMS 12V 100Ah LiFePO4 Deep Cycle 24000 Times Marine Lithium Battery BMS 12V 100Ah LiFePO4 Deep Cycle 34000 Times Marine Lithium Battery BMS 12V 100Ah LiFePO4 Deep Cycle 4
