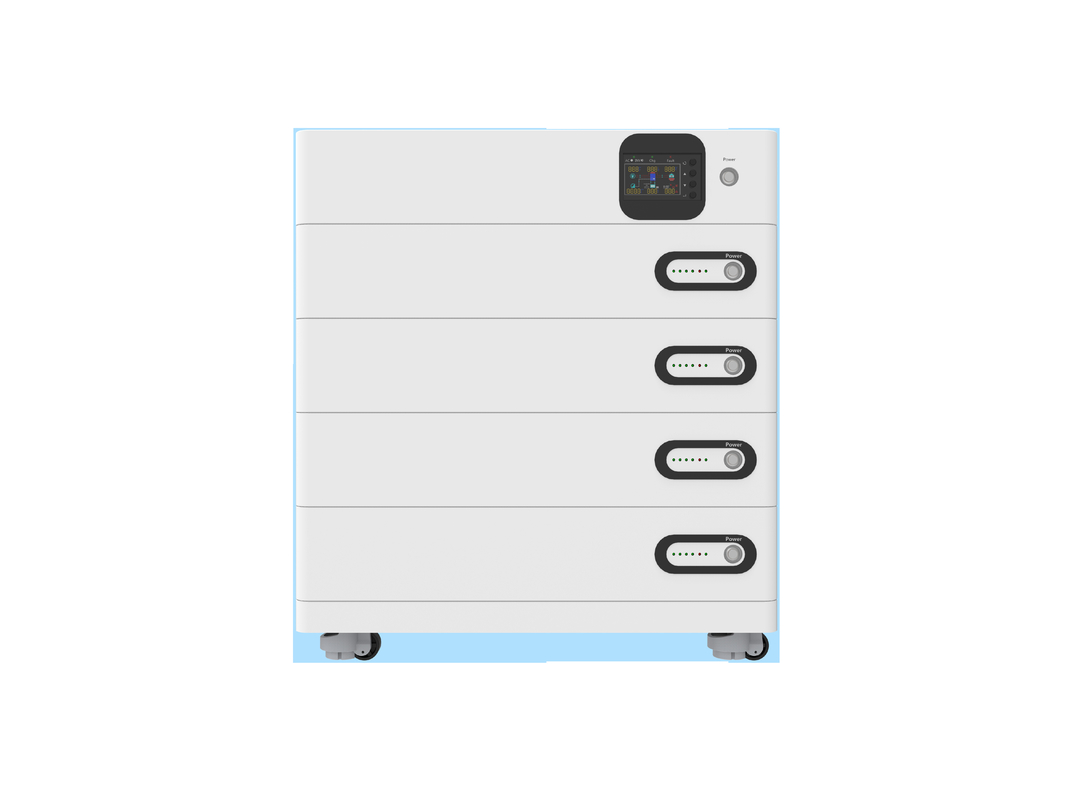

Stainless Steel Solar Metal Lithium Battery 10.24KWH 51.2V 5000W

Basic Information
Place of Origin: Guangdong, China
Model Number: CPB
Minimum Order Quantity: 50 pieces
Price: $1,958.00/pieces >=50 pieces
Packaging Details: wooden packing
Supply Ability: 50 Unit/Units per Month
Protection Level: IP20 External Size: 620W*345D*780mm
Nominal Voltage: 51.2V Voltage Range: 45~57.6V
Capacity: 10.24KWH ( 2.5kWH*4 ) Rated Power: 5000W
Humidity: 5%~95% Weight Approx.: 140KG
Port: Sz/hk
High Light:

10.24KWH Solar Metal Lithium Battery

,

5000W Metal Lithium Battery

,

5000W Home Energy Storage Battery

Product Specification
Brief Introdution

1. CPB series is a split-phase system, which is scalable so that you can provide 5 kWh of capacity up to 20 KWh per battery cabinet for flexible installation options. And it can be charged by either electricity from your utility or solar power.

CPB has four working modes: SOL(Solar First), UEI(Utility First),SBU(Solar-Battery-Utility),SUB(Solar-Utility -Battery). These
working modes are described refer to the setting part of user manual.
Battery
Nominal Voltage
51.2V

Voltage Range
45~57.6V

Capacity
10.24KWH ( 2.5kWH*4 )

Max.discharge Rate
1C

Max.charge Rate
1C

Battery Type
Li-ion(LFP)
AC Output
Rated Power
5000W

Surge Power
10000w

Output Voltage
220/230/240Vac±3%

Output Current
22A

Rated Frequency
50/60Hz

VTHD
<3%

Output Wave
Pure Sine Wave

Output Type
Euro Round Socket×4+Terminal

Max. Efficiency
93%
AC Input
AC Input Voltage Range
170~280Vac

AC Input Frequency
50/60Hz

Max AC Charge Current(Battery)
30A(0~60A Adjustable)
PV Input
Max. PV Power(Recommended)
6000W

Max. PV Voltage
450V

MPPT Range
120V~430V

Max PV Charge Current(Battery)
100A
Operating Conditions
Operating Temperature
0~55℃

Storage Temperature
-15℃~60℃

Humidity
5%~95%

Cooling Strategy
Fan

Weight
Approx. 140KG

Dimension [W x H x D, mm]
620W*345D*780mm

Packing
wooden case

Packing Dimension [W x H x D]
TBD

IP class
IP20

Communication
WIFI/RS485

Warranty
3 years
