| Place of Origin: | China |
|---|---|
| Brand Name: | Coslight |
| Certification: | UL, CE, FCC, RoHS, Un38.3, CB, IEC62133, MSDS |
| Model Number: | CF4840T1EA |
| Minimum Order Quantity: | 10pcs |
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 10~15days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 8000pcs/week |
| Brand: | Coslight Or OEM | Battery Type: | LiFePo4 |
|---|---|---|---|
| Max CH/DCH Current: | 100/100A | Communication: | CAN2.0/RS232/RS485 |
| Weight: | 49kg | Certifications: | UL & CE & IEC & UN |
| Comm Interface: | RS485，CAN. | ||
| High Light: | 48v 40ah Telecom Lithium Battery,Telecom Lithium Battery,48v 40ah Lifepo4 Battery |
||

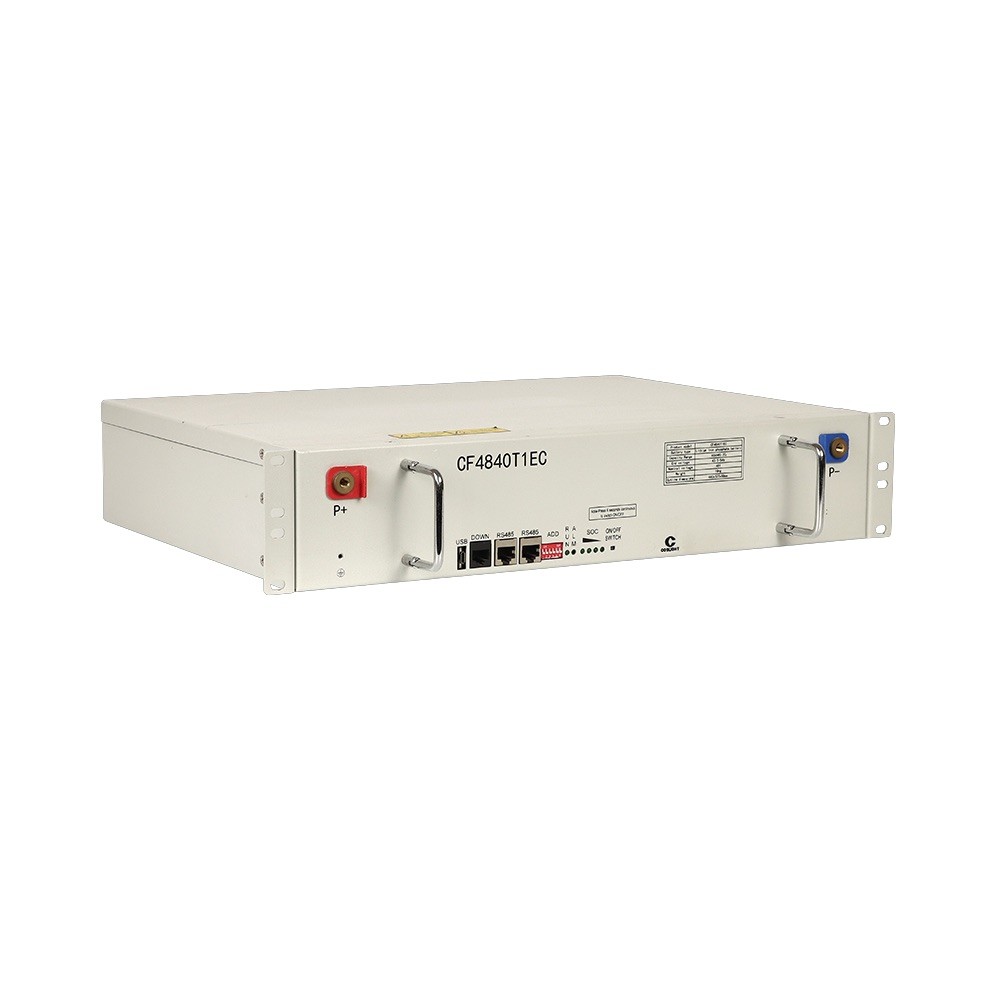

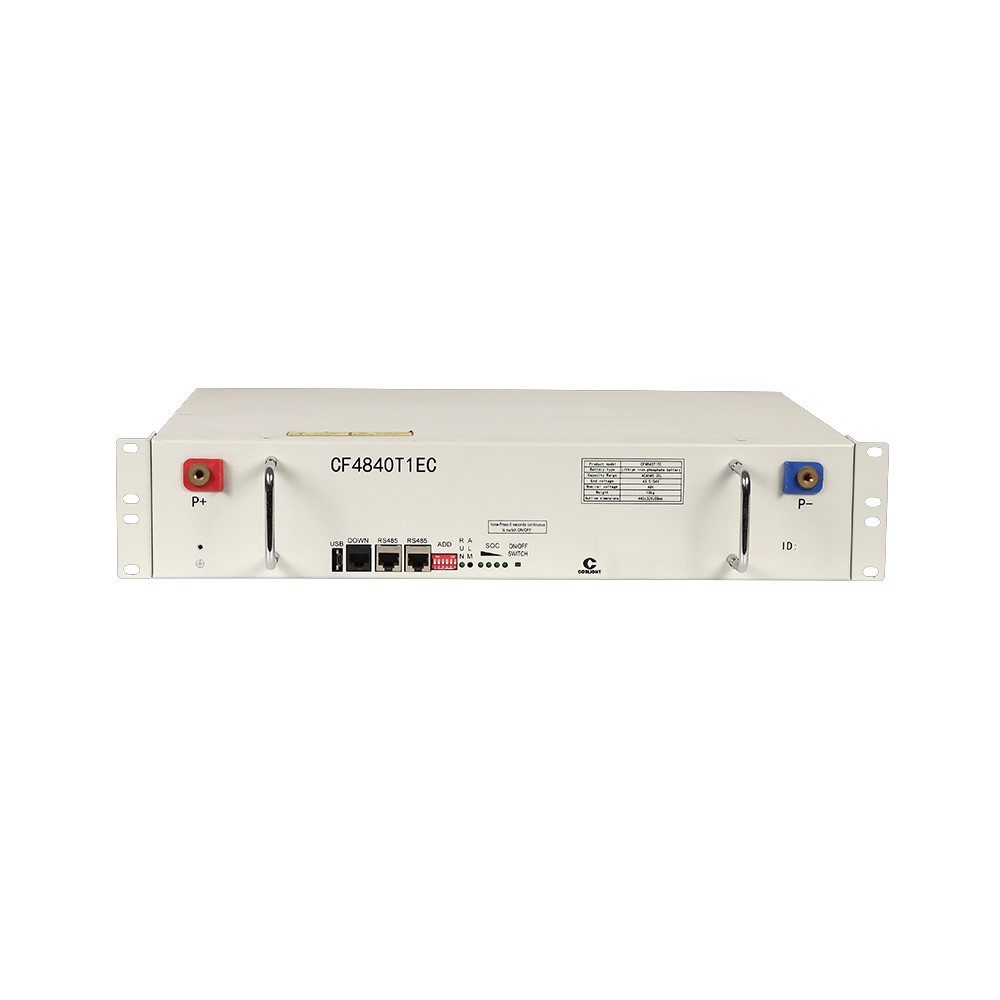

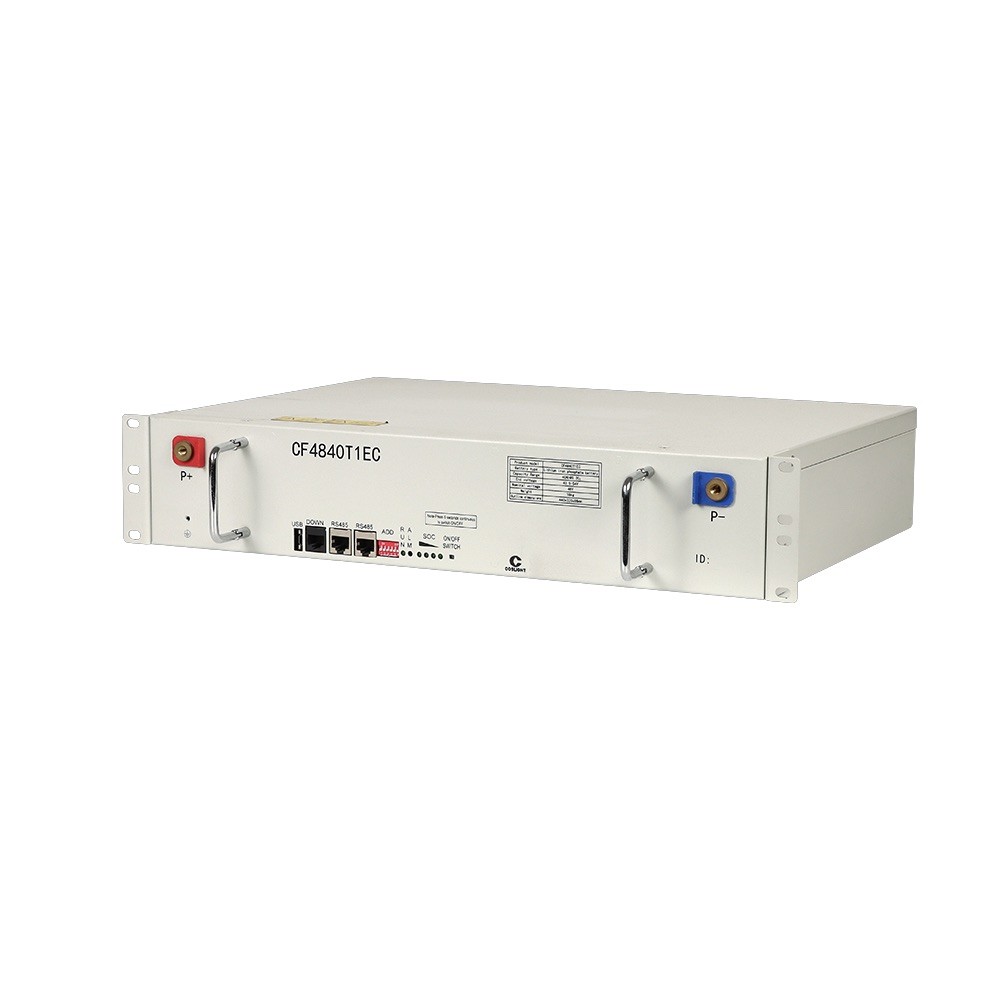

2U Telecom Lithium Battery For Solar Power System 48v 40ah Lifepo4 Battery
48v 40ah Lifepo4 Battery Energy Storage 2U Rack Mount Lifepo4 Battery For Solar Power System
Product Introduction:
|
P |
Product Model No. |
CF4840T1EC |
|
Anode Material |
LFP |
|
|
Nominal Voltage |
-48V(1P15S) |
|
|
operating voltage range |
42.0V-52.5V |
|
|
Max CH/DCH current |
40/40A |
|
|
Cycle life |
3000 times |
|
|
Standard capacity |
40Ah |
|
|
Weight |
19kg |
|
|
Width × depth × height |
440mm×320mm×88mm |
|
|
Self-discharge rate@25℃ |
＜3%(90 days Storage) |
|
|
Comm interface |
RS485,CAN. |
|
|
Max parallel quantity |
15 |
|
|
Max parallel power |
23.04KW |
|
|
Terminal connector |
M6, Torque: 8N.m |
|
|
Installation method |
19inch rack |
|
|
Protection functions |
Over Temp. , Over current, Short circuit , Over CH & Over DCH protections. |
|
|
Certifications |
UL & CE & IEC & UN |
|
|
Design life |
15years |
Product Description
CF4840T1EC Lithium battery is a High-tech product independently developed by Harbin Coslight New Energy, The battery is small in size and light in weight, and it supports 19-inch rack installation, It has a long service life and supports fast charging. It adopts advanced intelligent BMS with alarm and protection functions such as overcharge, over-discharge, over-current, temperature, etc., and historical data storage, charging current limiting. The product has prominent advantages in the field of communication backup power supply on specific occasions.
1. Safe - fire resistance
2. Long cycle life - 95% DOD cycle Over 3000 times
3. Excellent high-temperature performance - can work well under 60 ° C operating environment
4. High energy density - lighter and smaller
5. Maintenance-free type.
6. No contamination
